A2F SERIES · FIXED DISPLACEMENT PUMP / MOTOR

Axial Piston Pump / MotorBent Axis Design · Fixed Displacement · Open / Closed Circuit

High-performance rotary group with well-proven spherical control area — self-centering, low peripheral speed and high efficiency. Robust rolling bearings ensure a long service life for hydrostatic drives in both pumps and motors.

5~500Displacement ml/r

31.5MPaRated Pressure

7500r/minMax Speed

Low NoiseOperation

Supplier: 【Company Name】 Tel: +86 138-0000-0000

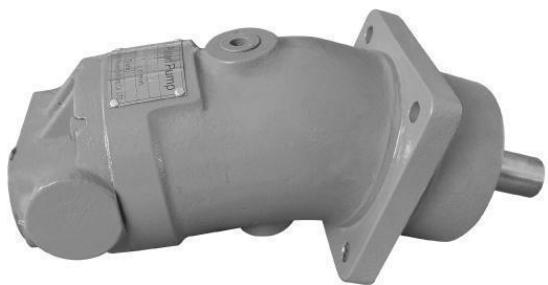

A2F fixed displacement axial piston pump

A2F Fixed Pump / MotorAxial Piston · Bent Axis

PRODUCT OVERVIEW

Overview

Axial piston unit of bent axis design with fixed displacement, for use as either pump or motor in hydrostatic drives, in open or closed circuit. As a pump, flow is proportional to drive speed and displacement; as a motor, output speed is proportional to flow and inversely proportional to displacement.

Pump Mode

Flow is proportional to drive speed and displacement, ideal for stable fixed-delivery oil supply and transmission.

Q ∝ n × Vg

Motor Mode

Output speed is proportional to flow and inversely proportional to displacement; torque rises with the pressure drop between high and low pressure sides.

n ∝ Q ÷ Vg · T ∝ Δp

Circuit Application

Suitable for open or closed circuits, compatible with fire-resistant fluids for a wide range of hydrostatic drive applications.

Open / Closed Circuit

SPECIAL FEATURES

Product Features

A well-proven rotary group and bearing design balancing efficiency, service life and installation convenience.

Spherical Control Area

High-performance rotary group with well-proven spherical control area — self-centering, low peripheral speed, high efficiency.

Robust Rolling Bearings

Ball and roller bearings work together to ensure a long service life and reduced maintenance.

Radial Load on Shaft

The drive shaft is capable of adopting radial loading, adaptable to a variety of mounting and transmission setups.

ISO Mounting Flange

Uniform ISO mounting flange for fixed pumps/motors and variable motors from size 55 for easy interchange and standardization.

Fire-Resistant Fluids

May be used in conjunction with fire-resistant fluids for high-temperature and fire-safety applications.

Low Noise

Optimized structure and port design deliver low-noise operation for a better working environment.

PRODUCT GALLERY

Product Gallery

Product photos, section view and type code chart. Current images are placeholders — replace them with your own product shots.

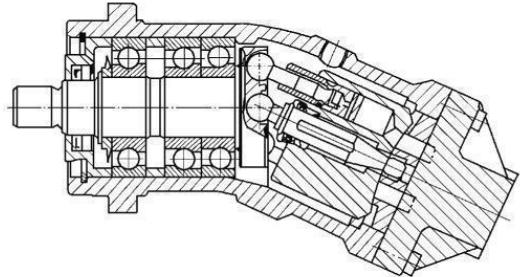

A2F pump section view — **Section View**　Drive shaft, piston assembly, cylinder block, control plate and bent axis structure (sizes 10–160)

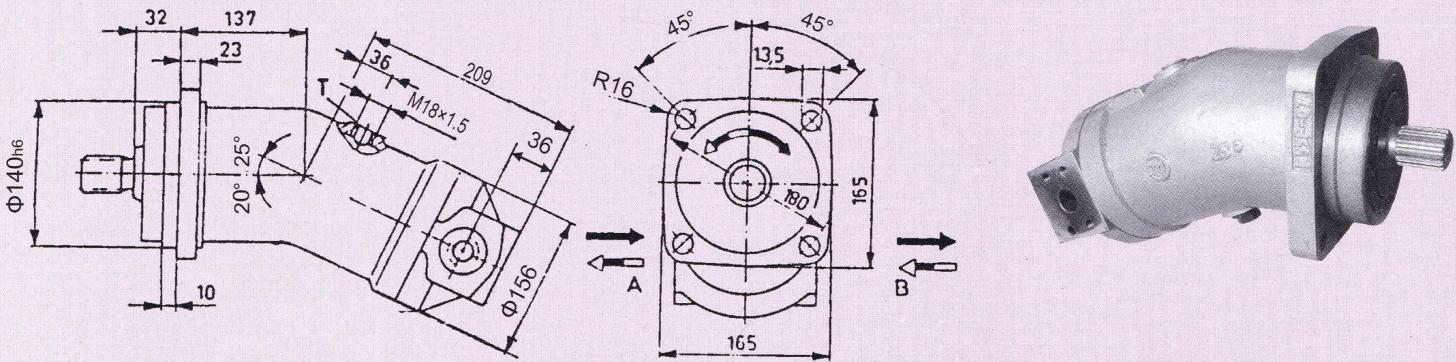

A2F fixed displacement piston motor — **Motor Mode**　Bent-axis piston motor outline and mounting dimensions

Placeholder note: use the arrows to switch slides. Replace the files in assets/ with your own product images.

TYPE CODE

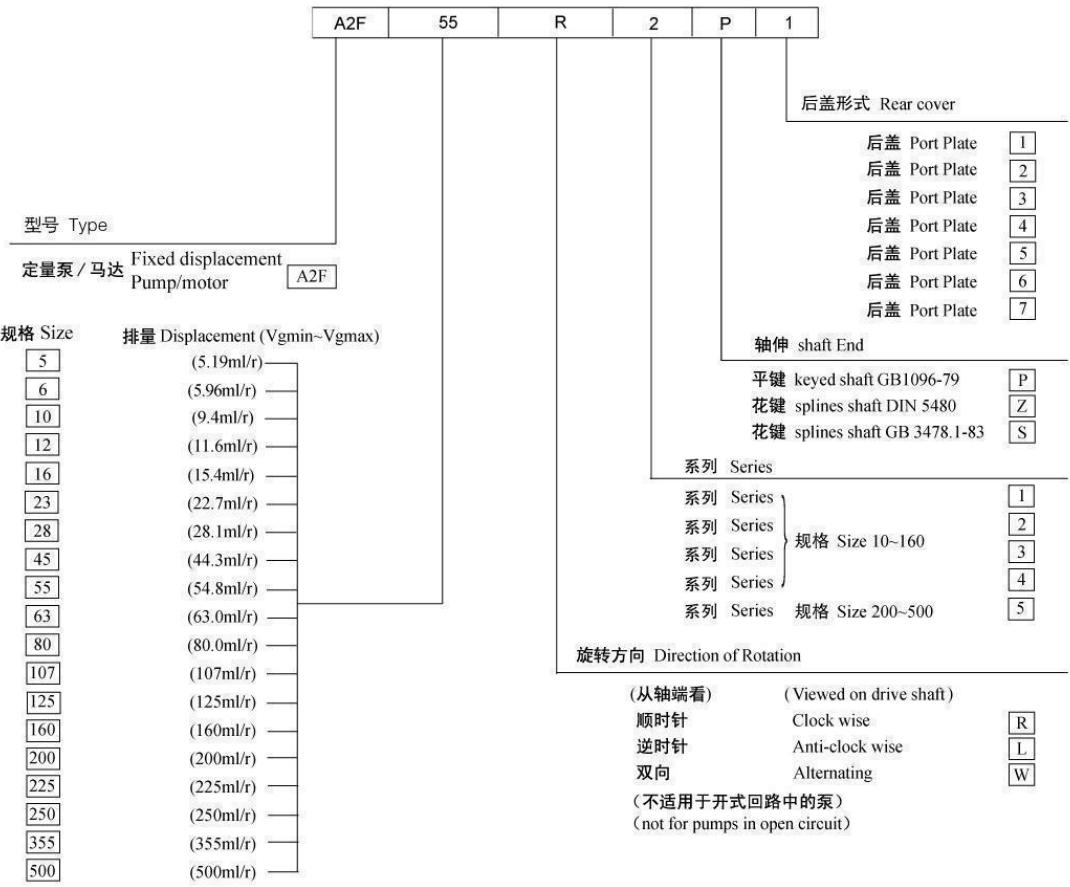

Type Code

The type code is built from displacement size, direction of rotation, series, shaft end and rear cover, making selection straightforward.

A2FSeriesFixed displacement pump / motor

55Size / Displacement54.8 ml/r

RRotationViewed on shaft: R CW / L CCW / W bidirectional

2SeriesSeries 1–5

PShaft EndP keyed / Z splined DIN5480 / S splined GB3478.1

1Rear Cover1–7, open / closed circuit

Ordering example: A2F 55 R 2 P 1　＝　A2F fixed displacement pump, size 55, clockwise rotation, series 2, keyed shaft, port plate 1.
Type example: A2F 55 W 2 P 2　＝　Fixed displacement pump size 55, bidirectional, short neck, keyed shaft, motor with both port ends flanged.
Note: rotation W (bidirectional) is not applicable to pumps in open circuit.

Code Field	Meaning	Options
Rotation	Viewed on drive shaft	R clockwise / L counterclockwise / W bidirectional (W not for open-circuit pumps)
Shaft End	Drive shaft form	P keyed GB1096-79 / Z splined DIN5480 / S splined GB3478.1-83
Rear Cover	Port connection	1–2 closed-circuit pump & motor (thread / flange) · 3–4 open-circuit pump (flange / thread)
Service	Sizing	Tell us the required displacement and the host machine brand, and we will provide the matching type

DISPLACEMENT RANGE

Size & Displacement

A complete displacement series covering 5 ~ 500 ml/r.

TECHNICAL DATA

Key Technical Parameters

Overview of representative models below; the full specification table (max speed, max flow, max power, torque and weight) is available in the product catalog.

Model	Displacement ml/r	Rated MPa	Max MPa	Rated Speed r/min	Max Speed r/min	Rated Torque N·m	Vol. Eff. ≥%	Overall Eff. ≥%	Weight kg

Production and factory standards: JB/T7043-93, JB/T7044-93, GB7935-87. “—” indicates data not listed in the catalog.
